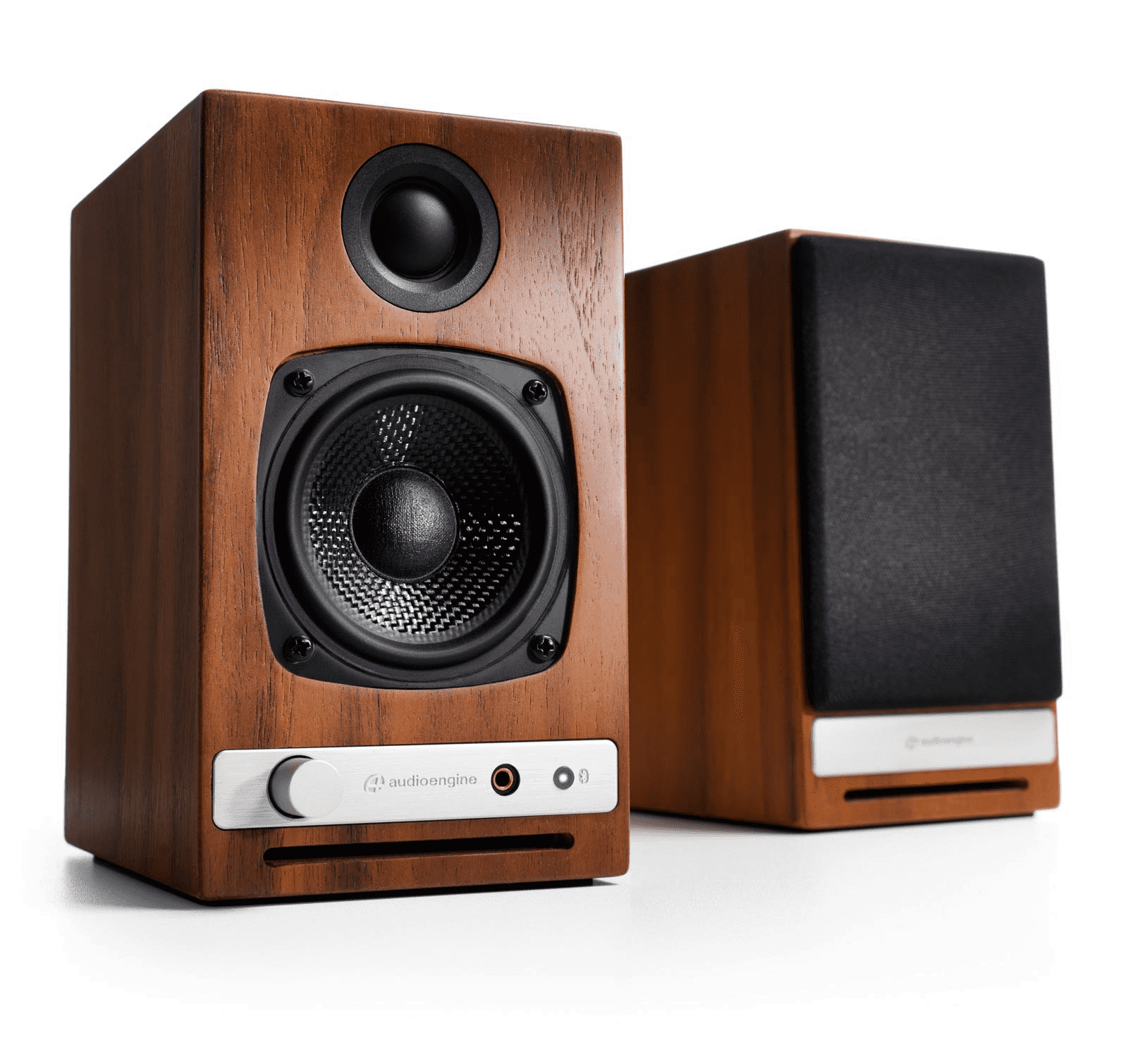

HD3 Wireless Amplified Speakers By Audioengine

The Audioengine HD3 sets a new standard for compact mini music systems because of its versatility and ability to play all of your music from any device.

No missed connections

Connect to HD3 any way you like: wirelessly or wired, digital or analog. Stream your music library, TIDAL, Spotify, Pandora, YouTube, etc. to HD3 from just about anywhere in your house without dropouts. Wireless setup is a breeze and only takes about a minute. And if you’re using HD3 on your desktop, connect up with a USB cable. The USB input bypasses your computer’s built-in low-quality headphone jack for a high-end listening experience. But if you’re not keen on USB or wireless you can still use any audio cable to connect.

Your go-to system

Easy setup, simple and useful features and wide stereo sound make HD3 your go-to music system. HD3 is expandable, so if you want deeper bass just connect up your subwoofer. No matter how you listen to music, HD3 has you covered.

Plug in your headphones

HD3 includes a dedicated high-performance headphone output so you can listen and not wake the neighbors. Its audiophile-quality headphone amplifier delivers a high-end sound that drives even the most demanding headphones.

Retro-forward design

HD3 was designed for audio performance, but speakers obviously also need to look good so we’ve included furniture-grade wood veneers, aluminum trim accents, and detachable magnetic grills that blend with any decor. Available in Satin Black as well as real Walnut and Cherry wood at no additional cost if you want to really show them off.

Small speakers that pack a punch

Built-in power amplifiers save space and eliminate the need to connect HD3 to a stereo receiver or external power amp. Simply plug the left speaker into a power outlet and connect the included speaker wire from the left to the right speaker. All internal components of the HD3 are designed and tuned together, so you’ll get Audioengine’s Signature Sound and a much more efficient system than traditional separate speakers and amplifier.

The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier configuration which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection.

Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives a very smooth response. The woofers are Kevlar woven glass aramid composite with rubber surrounds. Kevlar is obviously very strong, which means the woofer retains its shape when being driven at high levels.

The Bluetooth built into the HD3 powered speakers features aptX coding which is an advanced Bluetooth audio codec with very impressive sound. And even if your phone or tablet doesn’t have aptX, the HD3 Bluetooth solution is backward-compatible with SBC and AAC codecs, so you can wirelessly stream music from any Bluetooth-enabled device and still enjoy all your music. High-fidelity Bluetooth aptX that really works and sounds great. Here’s why:

Extended wireless range – Most Bluetooth implementations have a very limited range, typically within just one room. But with careful signal management circuitry and antenna tuning, we offer a superior solution that has up to 3 times the range of standard Bluetooth for multi-room use, with no degradation in audio quality.

24-bit DAC – The HD3 Bluetooth receiver and USB input both utilize the PCM 5102 DAC, widely known for its low-noise and high-fidelity. The PCM 5102 is used as an upsampling DAC and will pad all bit depths to 24-bits, achieving a higher signal-to-noise ratio and lower noise floor. Due to the high signal-to-noise specs of the PCM 5102, the fact that digital signal is upsampled to 24-bits – as well as the added benefit of onboard triple redundancy power source conversion and filtering – the HD3 Bluetooth implementation presents impressive low noise and low distortion characteristics with a noticeable improvement over other Bluetooth devices.

Need help getting started with your new HD3’s? Here are some resources that will help.

• HD3 Setup Guide
• Product Line Brochure
• Customer Support

Type

2.0 powered multimedia speaker system

Amplifier type

Dual analog class A/B monolithic

Power output

60W peak power total (15W RMS / 30W peak per channel), AES

Drivers

2.75″ Kevlar woofers, 3/4” silk dome tweeters

Inputs

3.5mm stereo mini-jack, stereo RCA, USB, Bluetooth

Outputs

RCA variable line-out, 3.5mm mini-jack headphone out

Mains voltages

110-240V 50/60Hz auto-switching

SNR

95dB (typical A-weighted)

THD+N

<0.05% at all power settings

Crosstalk

<50dB

Frequency response

65Hz-22kHz ±2.0dB

Freq. response w/bass reduction switch selected

100Hz-22kHz ±2.0dB (-5dB down)

Input impedance

5K ohms unbalanced
