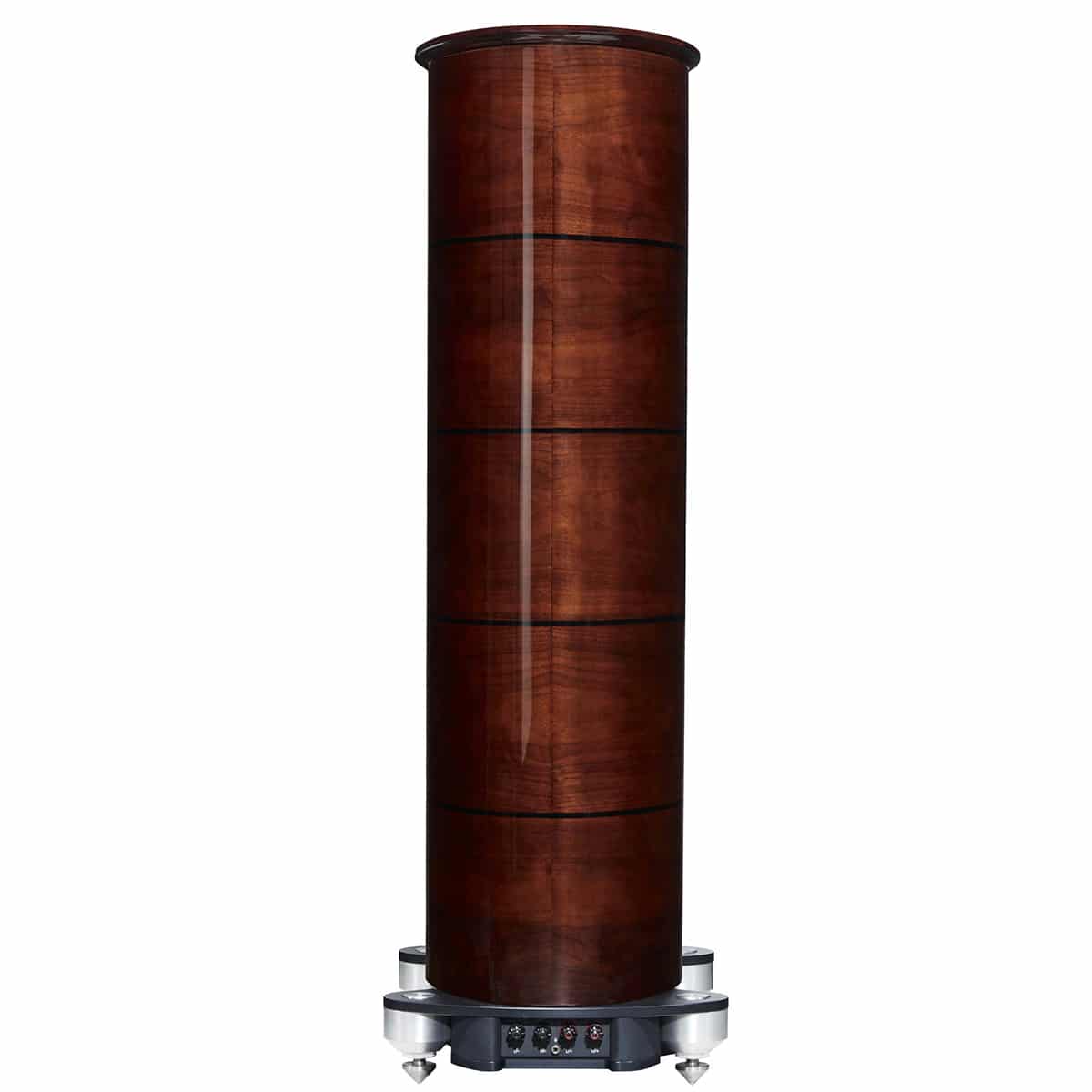

F1-10 Floorstanding Loudspeakers By Fyne Audio

The Fyne F1-10 floorstanding loudspeaker offers a 250mm (10″) IsoFlare driver and twin cavity BassTrax ported cabinet to deliver bass down to 28Hz, while the 75mm titanium dome compression tweeter offers seamless, time aligned HF response to over 26kHz. The F1-10’s very high sensitivity (94dB/W) ensures exceptional dynamic range and compatibility with the widest range of amplifiers from single-ended triode valve models to the highest power solid-state designs. The BassTrax porting and high-quality potentiometer controls for HF energy and presence ensure the F1-10 will deliver optimum performance irrespective of room size or placement. Available in traditional lacquered burr walnut finish with plinth top, the F1-10 offers an exemplary finish and a bold statement in loudspeaker design for the audiophile.

System Type: 2 way, downwards firing port with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS): 20 – 280
Continuous power handling (Watt RMS): 140
Sensitivity (2.83 Volt @ 1m): 94dB
Nominal impedance: 8 Ohm
Frequency response (-6dB typical in room): 28Hz – 26kHz
Drive unit complement: 1 x 250mm IsoFlare point source driver, multi-fiber bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system
Crossover frequency: 750Hz
Crossover type: Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated
System adjustments: High frequency energy (750Hz – 26kHz) +/-3dB Presence (2.5kHz – 5.0kHz) +/- 3dB
Dimensions – HxWxD: 1191 x 405 x 581mm (46.9 x 15.9 x 22.9”)
Weight – Each: 57.7kg
Finishes: Piano Gloss Walnut
