D-80 Tube Power Amplifier By Audio Research
- Item #:
- Reviews
- | Write a Review
Product Summary:
The D-80 tube amplifier combines rich musicality, balanced KT150-powered performance, immersive sound staging, and automatic bias control in a refined high-end design optimized for discerning audiophiles and balanced audio systems.
Click To Read MoreTrial Period
90 Days (Exchange)
Countries Shipped
USA
Burn-In Time
100 Hours
Have Questions? 844-462-8346
Call our experts for product info and advice or chat now with a specialist.
Price:
Amplifiers, Audio Research, Tube Amplifiers
D-80 Tube Power Amplifier By Audio Research
$12,950
The D-80 tube amplifier combines rich musicality, balanced KT150-powered performance, immersive sound staging, and automatic bias control in a refined high-end design optimized for discerning audiophiles and balanced audio systems.
Click To Read MoreProduct Description

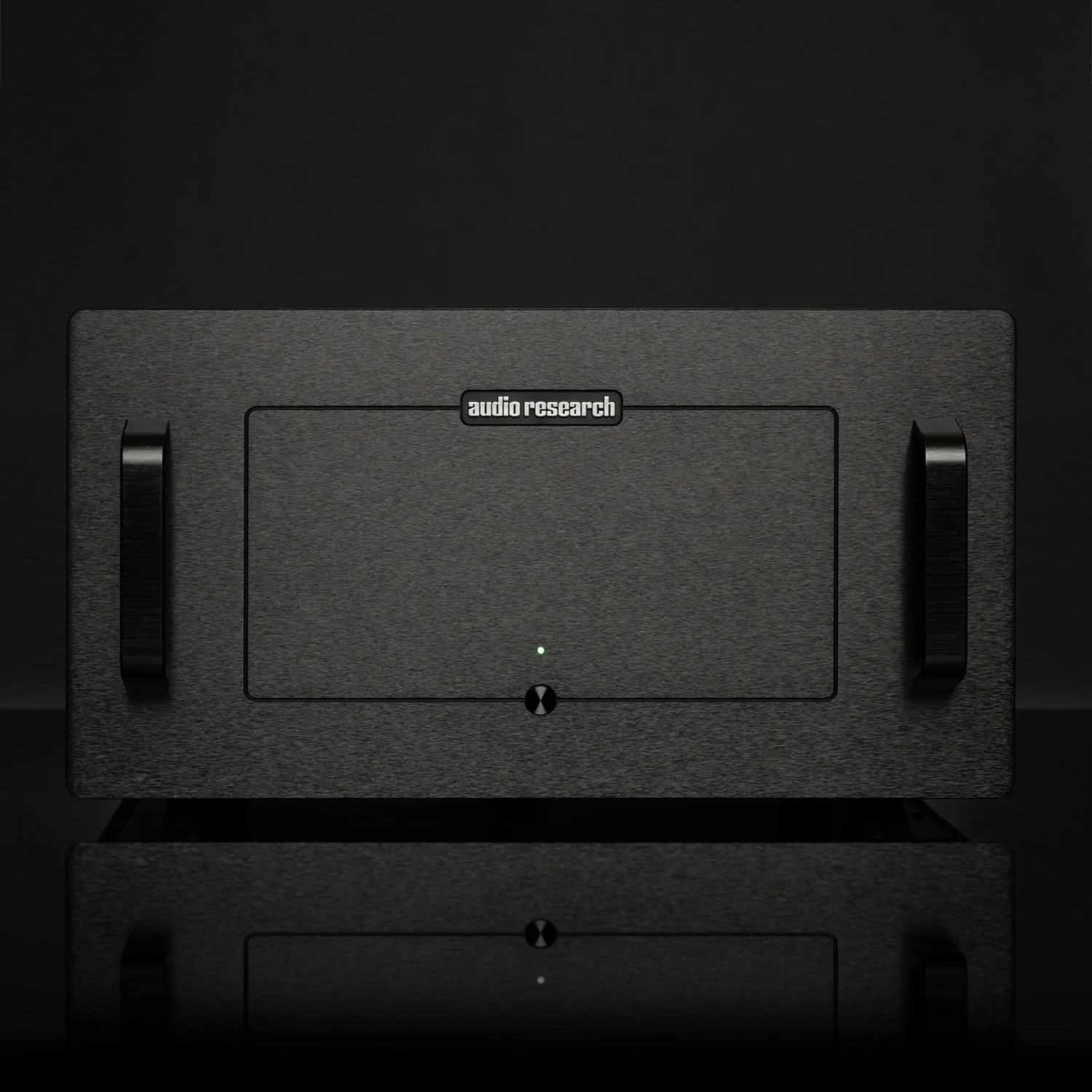

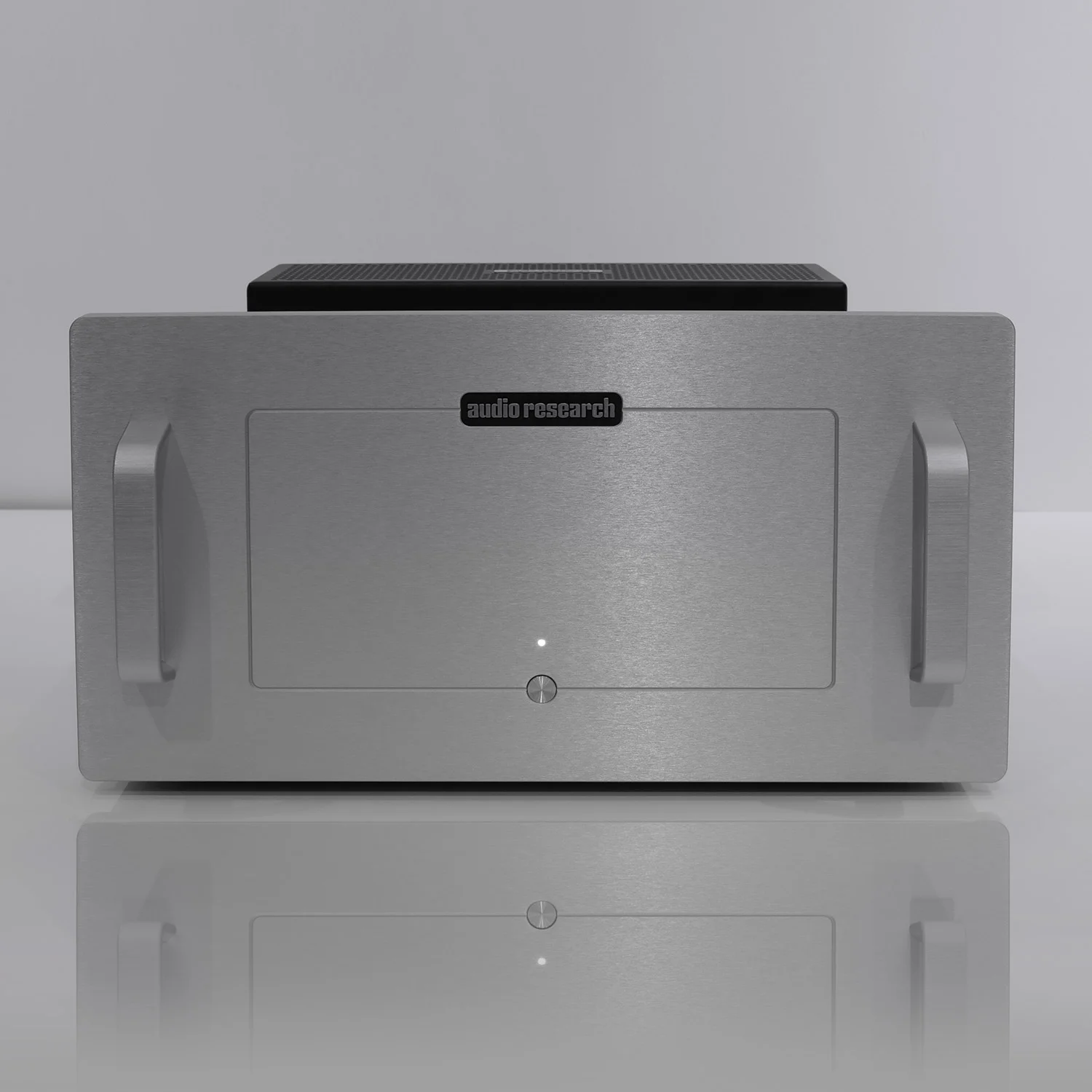

The D-80 tube amplifier delivers a rich, expansive tonal character with impressive resolution and musical authority, wrapped in a refined design inspired by premium reference-level tube amplification.
Consider the D-80 as a less expensive and streamlined version of the Reference S-80… the same amplifier, without the front-panel meter display, single-ended triode output mode, or RCA input jacks (balanced/XLR only).
Building on the legacy of the iconic “D” series amplifiers that helped define high-performance audio, the D-80 carries forward a tradition of exceptional sound quality, dynamic presence, and timeless engineering.

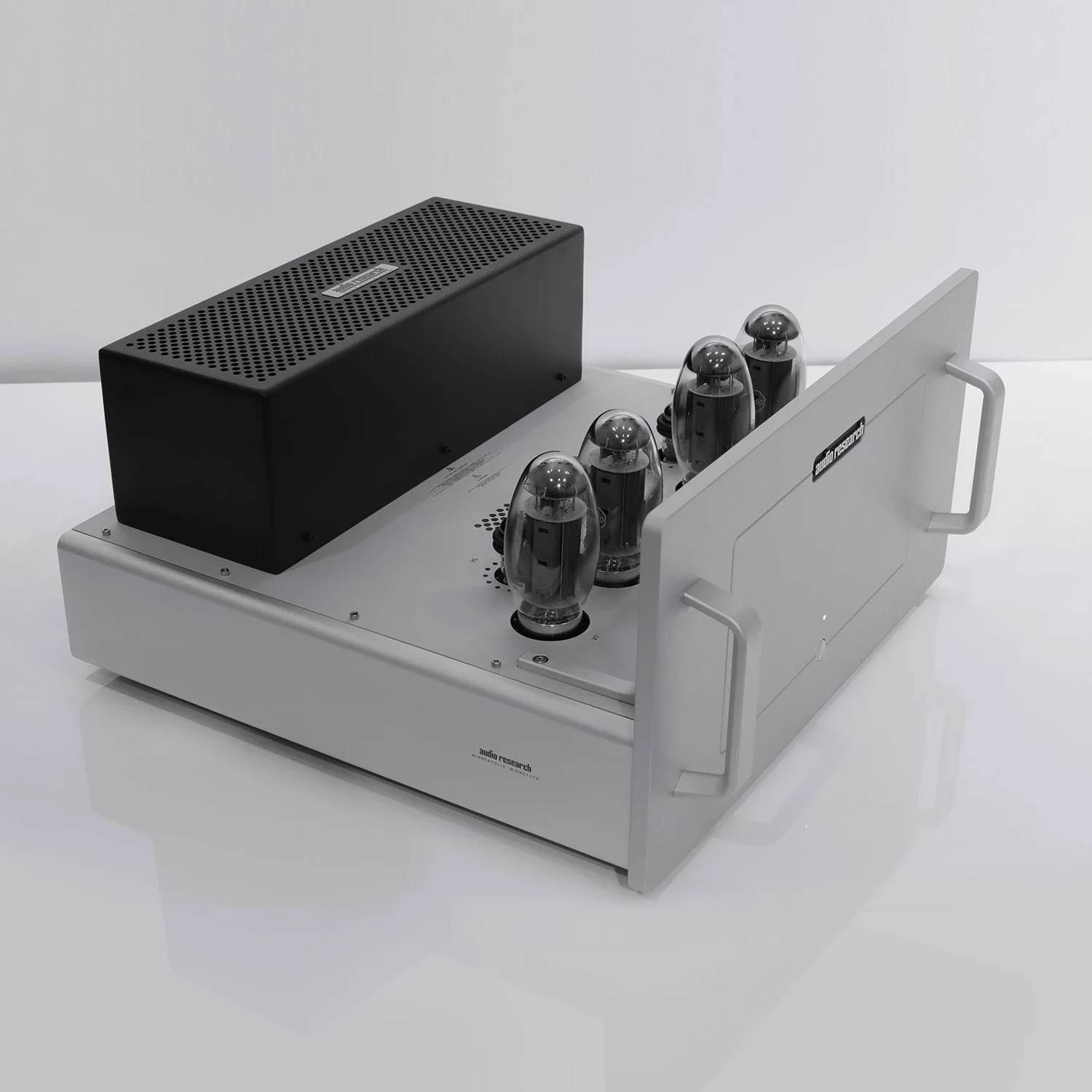

Drawing heavily from the acclaimed Reference 80S stereo tube amplifier platform, the D-80 features a fully balanced differential signal path with a pair of KT150 output tubes per channel. Carefully selected internal components contribute to excellent tonal depth, controlled bass response, and a spacious, immersive soundstage — all in a more accessible configuration.
The D-80 utilizes a full pentode design and is optimized for balanced audio systems, featuring balanced XLR inputs for seamless integration with high-end preamplifiers. Multiple 4-, 8-, and 16-ohm speaker taps provide flexible loudspeaker matching, while the fully balanced output stage drives both speaker terminals for enhanced performance.
An advanced auto-bias system continuously adjusts output tube bias in real time, compensating for tube aging and fluctuations in line voltage to help maintain consistent sonic performance over time.
Each unit is precision-built, thoroughly tested, and individually auditioned to ensure exceptional quality and listening performance.
Reviews
Architeg
“The 80 watts per channel specification might sound technical, but what it translates to is an amplifier that can effortlessly drive a wide range of speakers, filling any room with immersive sound. You’re not just hearing music—you’re feeling it.”
Home Theater HiFi
“Find an Audio Research dealer and listen to this amplifier. Given its extremely high-quality construction, amazing sound, and consistently high resale value, you might just change your mind. Before you spend any fraction approaching 50% of the price of this amplifier, you owe it to yourself to at least hear the Audio Research VT80 tube amp. It’s that good.”
Videos
Specifications
- Power Output:
- Power Output: 70 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at 140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon both line voltage and “condition” i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not critical)
- Power Bandwidth: (-3dB points) 7Hz to 68kHz
- Frequency Response: (-3dB points at 1 watt) 0.7Hz to 94kHz
- Input Sensitivity: 1.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms). RMS SE for rated output.
- Input Impedance: 300K ohms Balanced (75K ohms SE)
- Output Polarity: Non-inverting. Balanced input pin 2+ (IEC-268)
- Output Taps: 4, 8, 16 ohms
- Output Regulation: Approximately 1.0dB 16 Ohm Load to Open Circuit (Damping factor approximately 8)
- Overall Negative Feedback: 15dB
- Slew Rate: 10 volts/microsecond
- Rise Time: 4.0 microseconds
- Power Requirements: 105-130VAC 60Hz (210-250VAC 50Hz) 420 watts at rated output. 221 watts at “idle”, 3.6 watts off Units for Japan: 100VAC 50/60Hz
- Tubes Required: 2 matched pair KT150 (Power output V1-V4); 2 6H30 (Gain stage V5, V6)
- Dimensions:
- Width 18.5” (47 cm) chassis; 19.0” (48.26 cm) faceplate
- Height 10.5” (26 cm)
- Depth 18.5” (47 cm)
- With handles & connectors: 21” (53.3 cm)
- Weight:
- 62 lbs. (28.2 kg) Net
- 73 lbs. (32.7 kg) Shipping
Know more details about products
Product Description
Lehmann Black Cube SE II – Precision Phono Stage for True Audiophiles
The Black Cube SE II builds on the acclaimed SE circuit, upgraded with superior sockets and an adjustable bass filter, allowing you to fine-tune your system to your personal listening preferences. Designed for maximum musical engagement, it delivers the sensation that your favorite recordings were crafted just for you, bringing instruments and vocals closer than ever.
Tailored for Every System
Compatible with nearly all MM and MC cartridges, the Black Cube SE II includes solder-free slots for custom impedance adjustments, plus an extra hardwired plug-in location for immediate flexibility. Optional matching resistors can be provided with your order at no extra cost, making it easy to optimize the phono stage for your system.
Audiophile-Grade Audio Circuitry
At its core, a high-precision passive RIAA filter network sits between two linear gain stages, built with surge-proof, narrow-tolerance polypropylene capacitors. This design preserves transients, dynamics, and timbres with exceptional clarity. Professional-grade input stages reduce noise while enhancing precision and power. Additional modules handle hum, high-frequency interference, and random voltage suppression, and the double-sided audio board ensures a low-interference signal path.
Dependable PWX Power Supply
The external PWX power supply features a custom toroidal transformer with static shielding, providing stable, safe, and powerful operation. Gold-plated Neutrik XLR connectors maintain secure connections, while shielded cables and mechanically damped aluminum housings minimize vibrations and interference.
Elegant Design
With a choice of silver, black, or chrome-plated front panels, the Black Cube SE II combines audiophile-grade performance with a refined aesthetic that looks as good in your HiFi rack as it sounds in your system.
Professional Endorsement
Known for its neutral, natural sound, Lehmann equipment is trusted by professional recording studios and music experts worldwide. The Black Cube SE II offers a high-fidelity listening experience that reveals every nuance in your favorite recordings.
Note: The sonic profile of Lehmann gear is perhaps the most neutral we can find. This brand is quite popular with our professional music/recording studio clients.
Reviews
AUDIO
“Upgraded to the SE version by the PWX, it was definitely poking the fire again like almost no other phono pre in its price range. Merciless heavy rock by Vanilla Fudge or massive bigband attacks by Count Basie were just about to blaze through the listening room. Pimped in such a hot manner, the Lehmann Black Cube SE II is state-of-the-art.”
https://jaguaraudio.com/wp-content/uploads/2021/06/EN-2020_01-AUDIO-Black_Cube_II.pdf
Hifi News
“This is a true audiophile phono stage and, partnered with equipment of equal quality, the results are remarkable. Indeed, the SE II is difficult to fault even compared to the competition in a much higher price bracket. The exceptionally low background noise allied to a fabulous rhythmic and tonal rendition makes it worthy of consideration for those seeking the most detail from their vinyl without having to make a hyperspace price jump.”
https://jaguaraudio.com/wp-content/uploads/2021/06/EN_review_Hifi_News_02_2010_SEII_screen.pdf
Hifi News
“To ?nd more depth and detail in music I know so well was a remarkable experience and I warmed to this little gem of a phono stage all over again.”
Specifications
The impressing technical details of the Black Cube SE II.
Sensitivity for output level 775 mV/ 0 dB (with activated high gain switch): MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz
Gain 1 kHz: MM: 46 dB; MC: 66 dB
Maximum input level 1 kHz: MM: 45 mV; MC: 4,5 mV
Signal to noise ratio (RMS unweighted): MM: 71 dB; MC: 63 dB
Gain: 36 dB, 46 dB, 56 dB, 66 dB
Channel separation: > 80 dB at 10 kHz
Input impedance: 47 kohms, 1 kohm, 100 ohms, 1 x custom load, 1 x hardwire slot
Output impedance: 47 ohms
Input capacitance: 100 pF
Channel mismatch: typ. 0.5 dB
Bass filter: 16 settings between 7 Hz and app. 90 Hz
Power consumption: < 3 W
Outer dimensions W x D x H:
Audio section: 114 mm x 124 mm 50 mm
PWX power supply: 93 mm x 233 mm x 45 mm
Weight:
Audio section: 0.6 kg netto
PWX power supply: 1.0 kg netto
