EA-2000 Phono Amplifier By Phasemation
- Item #:
- Reviews
- | Write a Review
Product Summary:
Elevate your audio experience with Phasemation EA-1200 tube LCR non-feedback phono amplifier, featuring a precision MC step-up transformer, advanced LCR equalizer, and a powerful noise-reducing power supply, all designed to capture the essence of music and deliver breathtaking sound quality.
Click To Read MoreTrial Period
90 Days (Exchange)
Countries Shipped
USA
Burn-In Time
100 Hours
Have Questions? 844-462-8346
Call our experts for product info and advice or chat now with a specialist.
Price:
Analog, Phasemation, Phono Preamp

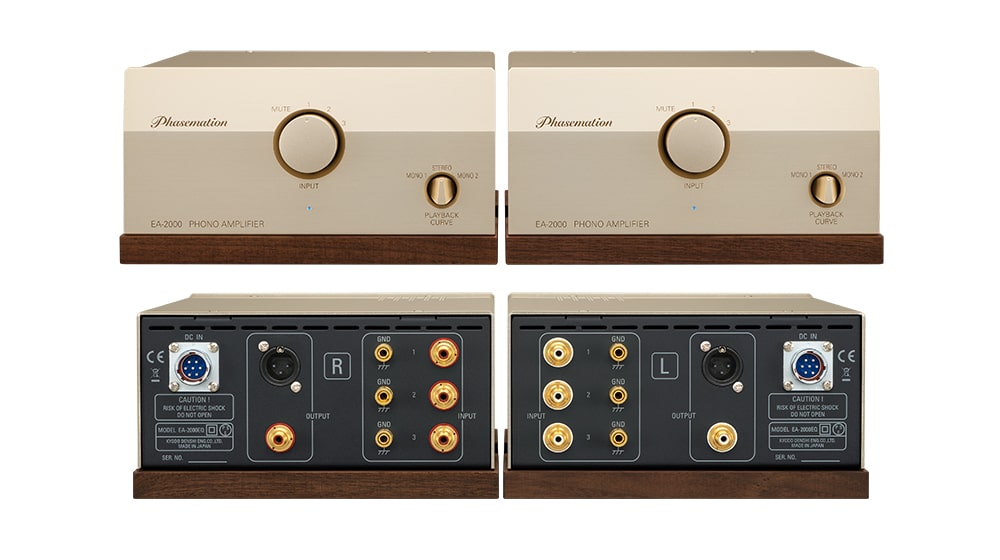

EA-2000 Phono Amplifier By Phasemation
$42,975
Elevate your audio experience with Phasemation EA-1200 tube LCR non-feedback phono amplifier, featuring a precision MC step-up transformer, advanced LCR equalizer, and a powerful noise-reducing power supply, all designed to capture the essence of music and deliver breathtaking sound quality.
Click To Read MoreProduct Description
Phasemation EA-1200 Phono Equalizer Amplifier
The Phasemation EA-1200 Phono Equalizer Amplifier is a reference-level vacuum tube phono stage from Phasemation, designed to extract exceptional musical detail and emotional realism from vinyl playback. Built around a non-feedback LCR equalizer architecture, the EA-1200 combines advanced transformer design, precision circuitry, and premium construction to deliver a natural, highly dynamic listening experience.
With dedicated MC and MM support, multiple equalization curves, and a robust tube-based power supply, this phono amplifier is engineered to reveal the full character and nuance of high-quality analog recordings.
Key Highlights

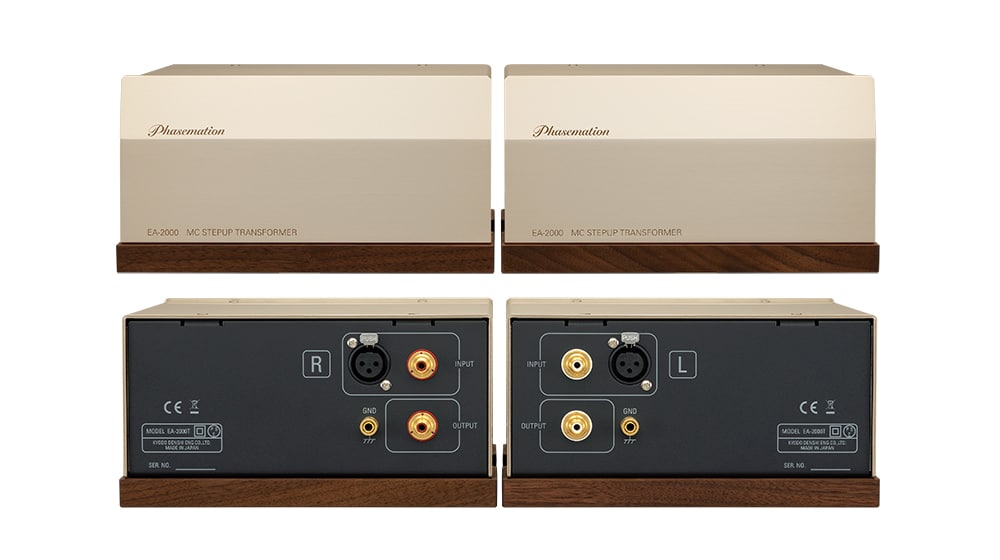

Precision MC Step-Up Transformer
The EA-1200 features a specially tuned moving-coil step-up transformer derived from the Phasemation T-1000 Step-Up Transformer. This carefully optimized design helps deliver exceptional signal purity and improved resolution when used with MC cartridges.
Advanced Non-Feedback LCR Equalizer
A sophisticated LCR equalizer circuit operates without negative feedback, helping preserve speed, dynamics, and musical detail. The circuit uses an SRPP configuration with ECC-803S tubes to provide wide dynamic range and expressive, lifelike sound reproduction.
For additional flexibility, three selectable equalization curves are available:
- RIAA for standard stereo LP playback
- Mono 1 (DECCA) for select mono recordings
- Mono 2 (Columbia) for vintage Columbia mono pressings
Independent left and right channel operation further enhances channel separation and clarity.

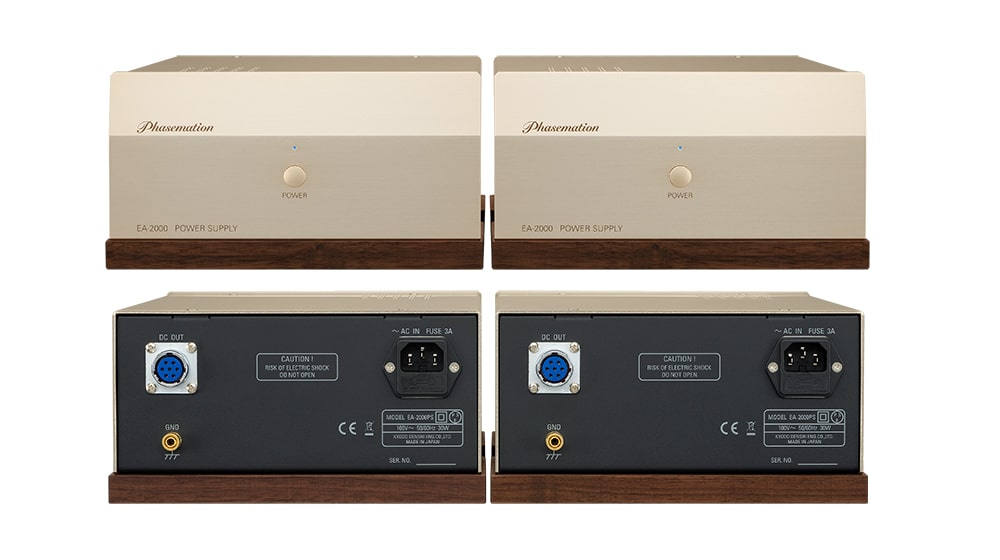

High-Performance Tube Power Supply
The EA-1200’s power supply is based on the design used in the Phasemation EA-1000 Phono Equalizer Amplifier. It incorporates a large-capacity R-core transformer, magnetically shielded choke coils, and 5U4G rectifier tubes to deliver stable, low-noise power. A precision three-terminal regulator helps maintain an excellent signal-to-noise ratio for clean, transparent playback.
Premium Construction and Connectivity
Attention to mechanical design and materials helps ensure both durability and optimal sonic performance. The EA-1200 features a solid chassis with a 10 mm thick aluminum front panel designed to minimize vibration and magnetic interference.
High-quality connectors—including Flutech RCA terminals and Neutrik-plated XLR inputs—provide reliable, high-integrity connections for demanding audio systems.
Designed for Serious Vinyl Enthusiasts
With its advanced tube circuitry, precision transformers, and meticulous build quality, the Phasemation EA-1200 offers a compelling solution for audiophiles seeking a phono stage capable of revealing the depth, nuance, and emotion captured in vinyl recordings.
Awards
• HiFi Review?Hong Kong) – Product of the Year,
• Stereo Sound – Grand Prix 2020 Grand Prix Prize,
• Ongen Publising – Audio Excellence Award 2021 GRAND SPECIAL PRIZE,
• Seibundo-shinkosha – MJ Technology of the Year Analog Components Excellent Award,
• Ongen Publising – analog Grand Prix Gold Award,
• “STEREO” magazine 2020 – BEST BUY COMPONENTS 2nd,
• “STEREO” magazine 2021 – BEST BUY COMPONENTS 3rd,
• ONGAKU NO TOMO SHA COTP. STEREO magazine – Best Buy Components 2022 Phono equalizer over ¥500,000 3rd Place Classic.
Specifications
Form : Tube Type LCR Non-Feedback Phono Amplifier
Input Form : MM MC
Input Sensitivity : 2mV 0.1mV
Suitable Cartridge Output Impedance : 47k? or less 1.5 – 40?
Gain : 40 dB 66 dB
Input Conversion S/N Ratio : –120dBV –140dBV
Rated Output Voltage : 200 mV (1kHz)
Rear Curve Tolerance : ±0.5dB(20 – 20kHz)
Power Consumption : 35W(100VAC 50 – 60Hz) for each ch
Dimensions (mm):
T?214?W?×118?H?×265?D?×2
EQ?214?W?×118?H?×368?D?×2
PS?214?W?×118?H?×352?D?×2
Weight Transformer : 4.5kg, Amplifier: 6.1kg, Power Supply: 7.8kg / x2
*Caution: For the EA-2000T input, the XLR or RCA, only one can be used for the input. If the two are used at the same time, it can be the cause of malfunctions.
Know more details about products
Product Description
Lehmann Black Cube SE II – Precision Phono Stage for True Audiophiles
The Black Cube SE II builds on the acclaimed SE circuit, upgraded with superior sockets and an adjustable bass filter, allowing you to fine-tune your system to your personal listening preferences. Designed for maximum musical engagement, it delivers the sensation that your favorite recordings were crafted just for you, bringing instruments and vocals closer than ever.
Tailored for Every System
Compatible with nearly all MM and MC cartridges, the Black Cube SE II includes solder-free slots for custom impedance adjustments, plus an extra hardwired plug-in location for immediate flexibility. Optional matching resistors can be provided with your order at no extra cost, making it easy to optimize the phono stage for your system.
Audiophile-Grade Audio Circuitry
At its core, a high-precision passive RIAA filter network sits between two linear gain stages, built with surge-proof, narrow-tolerance polypropylene capacitors. This design preserves transients, dynamics, and timbres with exceptional clarity. Professional-grade input stages reduce noise while enhancing precision and power. Additional modules handle hum, high-frequency interference, and random voltage suppression, and the double-sided audio board ensures a low-interference signal path.
Dependable PWX Power Supply
The external PWX power supply features a custom toroidal transformer with static shielding, providing stable, safe, and powerful operation. Gold-plated Neutrik XLR connectors maintain secure connections, while shielded cables and mechanically damped aluminum housings minimize vibrations and interference.
Elegant Design
With a choice of silver, black, or chrome-plated front panels, the Black Cube SE II combines audiophile-grade performance with a refined aesthetic that looks as good in your HiFi rack as it sounds in your system.
Professional Endorsement
Known for its neutral, natural sound, Lehmann equipment is trusted by professional recording studios and music experts worldwide. The Black Cube SE II offers a high-fidelity listening experience that reveals every nuance in your favorite recordings.
Note: The sonic profile of Lehmann gear is perhaps the most neutral we can find. This brand is quite popular with our professional music/recording studio clients.
Reviews
AUDIO
“Upgraded to the SE version by the PWX, it was definitely poking the fire again like almost no other phono pre in its price range. Merciless heavy rock by Vanilla Fudge or massive bigband attacks by Count Basie were just about to blaze through the listening room. Pimped in such a hot manner, the Lehmann Black Cube SE II is state-of-the-art.”
https://jaguaraudio.com/wp-content/uploads/2021/06/EN-2020_01-AUDIO-Black_Cube_II.pdf
Hifi News
“This is a true audiophile phono stage and, partnered with equipment of equal quality, the results are remarkable. Indeed, the SE II is difficult to fault even compared to the competition in a much higher price bracket. The exceptionally low background noise allied to a fabulous rhythmic and tonal rendition makes it worthy of consideration for those seeking the most detail from their vinyl without having to make a hyperspace price jump.”
https://jaguaraudio.com/wp-content/uploads/2021/06/EN_review_Hifi_News_02_2010_SEII_screen.pdf
Hifi News
“To ?nd more depth and detail in music I know so well was a remarkable experience and I warmed to this little gem of a phono stage all over again.”
Specifications
The impressing technical details of the Black Cube SE II.
Sensitivity for output level 775 mV/ 0 dB (with activated high gain switch): MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz
Gain 1 kHz: MM: 46 dB; MC: 66 dB
Maximum input level 1 kHz: MM: 45 mV; MC: 4,5 mV
Signal to noise ratio (RMS unweighted): MM: 71 dB; MC: 63 dB
Gain: 36 dB, 46 dB, 56 dB, 66 dB
Channel separation: > 80 dB at 10 kHz
Input impedance: 47 kohms, 1 kohm, 100 ohms, 1 x custom load, 1 x hardwire slot
Output impedance: 47 ohms
Input capacitance: 100 pF
Channel mismatch: typ. 0.5 dB
Bass filter: 16 settings between 7 Hz and app. 90 Hz
Power consumption: < 3 W
Outer dimensions W x D x H:
Audio section: 114 mm x 124 mm 50 mm
PWX power supply: 93 mm x 233 mm x 45 mm
Weight:
Audio section: 0.6 kg netto
PWX power supply: 1.0 kg netto
Reviews
There are no reviews yet.
