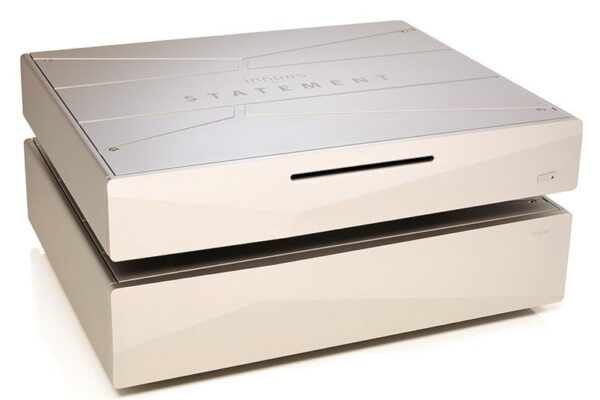

Statement Music Server By Innuos

• New linear power supply architecture with 8 independent PSU Rails
• EMI-optimised motherboard exclusively designed for Innuos
• Custom-designed Ethernet USB Reclockers with 3bpp OCXO clocks

• 10mm CNC-machined aluminum chassis
• 8GB RAM with 4GB In-Memory Playback
• New Generation Quad-core Intel CPU
• Asymmetrical isolation feet

Powered by innuOS

InnuOS allows complete Music Library management using a tablet or smartphone.

New Linear Power Architecture

Partnering once again with Dr. Sean Jacobs, a new power supply architecture was designed exclusively for the Statement. The power supply is distributed between two enclosures, with one enclosure containing the AC/DC conversion stage and the other containing the regulation stage together with the server components.

The advantage is clear: regulated “clean” power traverses a very short path, soldered point to point, with the least resistance and exposure to EMI. This is superior in efficiency compared to a traditional architecture where a separate power supply is used – regulated “clean” power needs to go through more obstacles of internal cabling, output connectors, cable, input connectors, and more internal cable before it reaches its destination.

8 Independent Linear PSU Rails

Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. Of particular note is the use of a dedicated power supply for each of the Ethernet and USB high-precision OCXO clocks, ensuring these clocks work at their best.

Custom-designed Ethernet and USB Re-clocker

Not fully satisfied with existing USB and Ethernet re-clocking designs, buy Innous statement music server that is designed in-house for their own boards for this purpose. At the heart of the design are 3 principles: The use of very high-precision OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.

While the use of OCXO clocks is not new, the way they are powered and the layout of the board have proven to be extremely important for their performance. As an example, dozens of USB controllers were analysed in terms of how they were powered and clocked so that they allowed this control to be done externally. The USB Controller is regulated by no less than 3 ultra-low noise regulators, one per independent voltage.

Keeping the clock very close to the controllers, via a dedicated track on the board itself, helps to avoid the losses in signal quality that come with the use of external clock units.

10mm CNC-machined Aluminium Chassis

Housed in a casing of 10mm-thick CNC-machined aluminum, the Statement is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.

Custom-designed Motherboard

The motherboard has been fully EMI-optimised to our own exclusive design by removing any unnecessary, noise-generating components capable of compromising audio. A fully customised BIOS ensures the hardware works at its lowest noise without impairing performance. Further EMI treatment is then applied to the motherboard so that EMI is absorbed rather than reflected in other components.

The Absolute Sound 2020 Product of the Year

“This meticulously crafted two-unit server with an external linear power supply offers the opportunity to run Roon, Roon utilizing Squeezebox (a tad glitchy but worth the glitches), or Squeezebox with your favorite UPnP software.”

http://innuos.com/uploads/cms/Reviews/March%20Editors%20Choice%202020%20-%20Pages%201,4,23,119,122_STATEMENT.pdf

Statement awarded Best HiFi Component

“The source in a network streaming system is the hard drive/server that the music is stored on, no product makes this clearer than the Innuos Statement. This takes the art of network server technology to a new high thanks to the separation of power supply and signal processing duties in two chassis and high accuracy clocking for the digital outputs. The latter being highly beneficial with music streaming services. The main issue with all digital systems is high-frequency noise, reduce that and you increase resolution. What makes the Statement so hard to beat is the ability to deliver a digital signal with incredibly low noise, we’ve not heard better, and that means phenomenal separation, dynamics, imaging and timing capabilities with a DAC or streamer that’s able to reveal as much.”

https://www.the-ear.net/review-hardware/best-hi-fi-components-2019-various

The Audio Beatnik Statement Review

“…the Innuos Statement has done more to change my opinion of digital music reproduction than anything has before.”

https://theaudiobeatnik.com/review-innuos-statement-music-server-part-1/

Audio outputs

Digital Output:
Re-clocked USB 2.0 supporting USB Audio Class 2
DoP, Native DSD and MQA
Re-clocked dedicated Ethernet Streamer Port

Connectivity

Ethernet: 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB: 2x USB 2.0 (1x re-clocked, 1x non-reclocked), 1x USB 3.0 (Backup)

Formats

CD Formats: Red Book
Disc Compatibility: CD, CD-R, CD-RW
Audio format for stored CDs: FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)

Sample Rates

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths: 16bit, 24bit, 32bit

User Control Interfaces

Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers.
Mobile: App for iPhone/iPad, Android and Windows 10

Hardware

CD/DVD drive: TEAC Slot-loading drive
Hard Drive: 1TB SSD with Vibration and EMI treatment
CPU: Intel Quad Core N4200
Memory: 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)

Streaming And Cd Storage

UPnP/DLNA: Integrated UPnP Server
Streaming Services: Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility: Roon Core and Roon Bridge
Average CD Storage Time: 5 minutes
CD Metadata: FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems:
Sonos Multi-room Wireless Music System
DLNA/UPnP compatible devices
USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD

Requirements

Network:
Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal

Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)

Power

Mains Supply: 230V AC / 115V AC – 8x Internal Linear Power Supply.
Power Consumption: 20W when idle, 35W peak

Physical

Dimensions:
Main: 90 x 420 x 350mm (H x W x D)
Power: 110 x 420 x 350 (H x W x D)

Weight:
Main: 8.2kg
Power: 13.4kg

In the box:
Innuos Statement Music Server
Mains Cable
2x 0.3m umbilical interconnect
2m Ethernet Cable
Quick Start Guide
