ZENmini Mk3 Music Server and optional Linear PSU By Innuos
Product Summary:
The ZENmini + LPSU combines the size and flexibility of the ZENmini Mk3 with the sound quality benefits of an optional LPSU to provide an audiophile-grade server with a smaller footprint. Upgrade to the "S" model for maximum performance. These units are available separately or together. ... Click To Read MoreTrial Period 45 Days
Countries Shipped USA
Burn-In Time 200 Hours
Have Questions? 844-462-8346
Call our experts for product info and advice or chat now with a specialist.
Price:
ZENmini Mk3 Music Server and optional Linear PSU By Innuos
$1,849.00
The ZENmini + LPSU combines the size and flexibility of the ZENmini Mk3 with the sound quality benefits of an optional LPSU to provide an audiophile-grade server with a smaller footprint. Upgrade to the “S” model for maximum performance. These units are available separately or together.
$1,849.00
Product Description
There are two versions of the ZenMini Mk3, the Standard model and the “S” model. The S model uses a solid-state (SSD) music storage drive, instead of a spinning (HDD) storage drive and the RAM is increased from 4GB to 8GB.

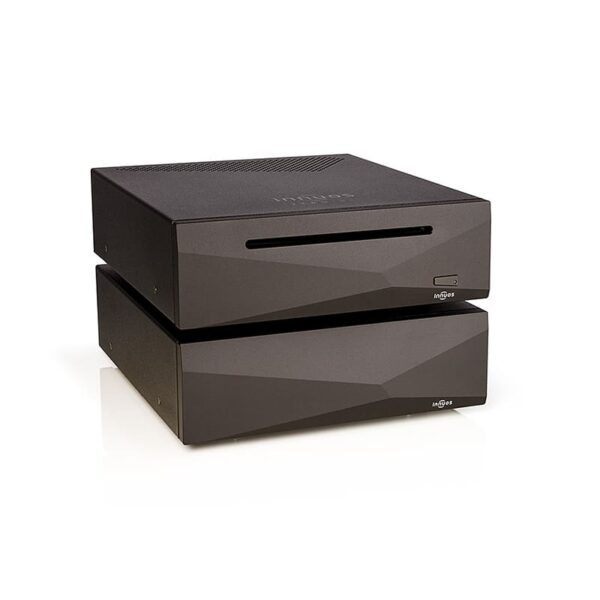

ZENmini + LPSU
Compact design with quiet, fanless operation
Versatile HiFi connectivity with analog and digital outputs
Roon Core and Endpoint
Custom audio treated components
Linear Power Supply designed by Dr. Sean Jacobs
Powered by innuOS
innuOS allows complete Music Library management
using a tablet or smartphone
Convenient Design
With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping to purchased downloads, Internet Radio to Spotify Connect.
Hi-Fi Engineering
The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.
Perfect CD Player replacement
Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favorite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.
Powerful Performer
Using our own exclusive innuOS operating system, our servers are configured and optimized from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.
Note: The ZENmini Mk3 S model is an upgraded model that includes a solid state (SSD) drive and 8.0GB of memory, rather than the standard 4.0GB. If you order your ZENmini with the SSD, you will receive the Mk3 S model.
Reviews
“This is a cogent, powerful server that is both upgradable and very good in its own right. What’s not to like?”
The ZENmini Mk3 receive a great review from HiFi+, praising the ZENmini Mk3 for its versatility, value, and performance while the addition of the LPSU moves it “from ‘good general purpose music server’ to ‘low-cost powerhouse’”.
https://jaguaraudio.com/wp-content/uploads/2020/10/hifiPlus2019_InnuosZENminiMk3lpsu.pdf
Innuos Zen Mini Mk.3 Music Server with LPSU Power Supply | REVIEW
Videos
Specifications
Audio Outputs
Digital Output:
USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
Coaxial S/PDIF up to 24bit/192KHz
Optical S/PDIF up to 24bit/192KHz
Analogue Output: RCA Analogue up to 24bit/192KHz

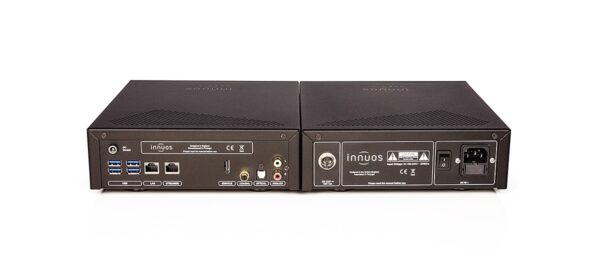

Connectivity
Ethernet: 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB: 4 x USB 3.0
Formats
CD Formats: Red Book
Disc Compatibility: CD, CD-R, CD-RW
Audio format for stored CDs: FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
Sample Rates
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths: 16bit, 24bit, 32bit
User Control Interfaces
Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile: App for iPhone/iPad, Android and Windows 10
Hardware
CD/DVD drive: TEAC Slot-loading drive
Hard Drive: 1TB WD Red HDD
CPU: Intel Quad Core N4200
Memory: 4GB DDR3
Streaming And Cd Storage
UPnP/DLNA: Integrated UPnP Server
Streaming Services: Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility: Roon Core and Roon Bridge
Average CD Storage Time: 5 minutes
CD Metadata: FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems:
Sonos Multi-room Wireless Music System
DLNA/UPnP compatible streamers
USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD
Requirements
Network:
Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
Power
Mains Supply: DC 16V 3A for ZENmini, 230V/115V AC for LPSU (country-dependent)
Power Consumption: 10W when idle, 25W peak
Physical
Dimensions:
ZENmini: 74 x 214 x 240 mm (H x W x D)
ZENmini LPSU: 74 x 214 x 240 mm (H x W x D)
Weight: 8,5 Kg
In the box:
Innuos ZENmini Mk3 1TB Music Server
Innuos ZENmini LPSU
Mains Cable
DC Power Cable
2m Ethernet Cable
Getting Started leaflet
